Description

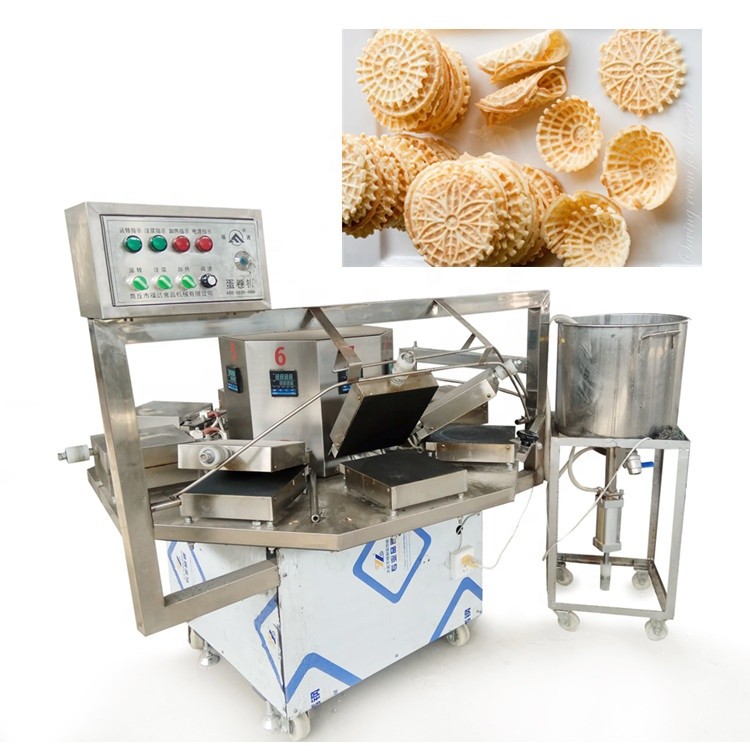

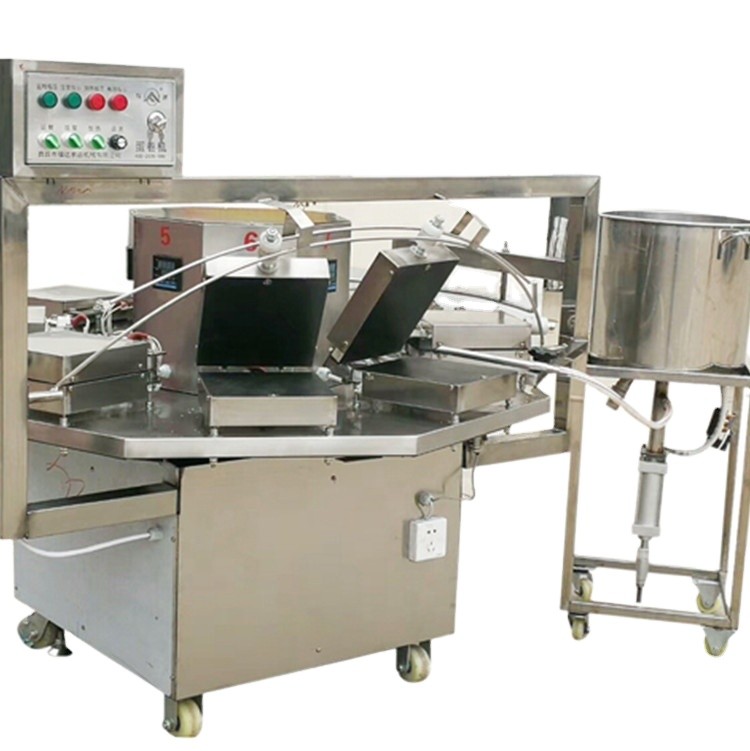

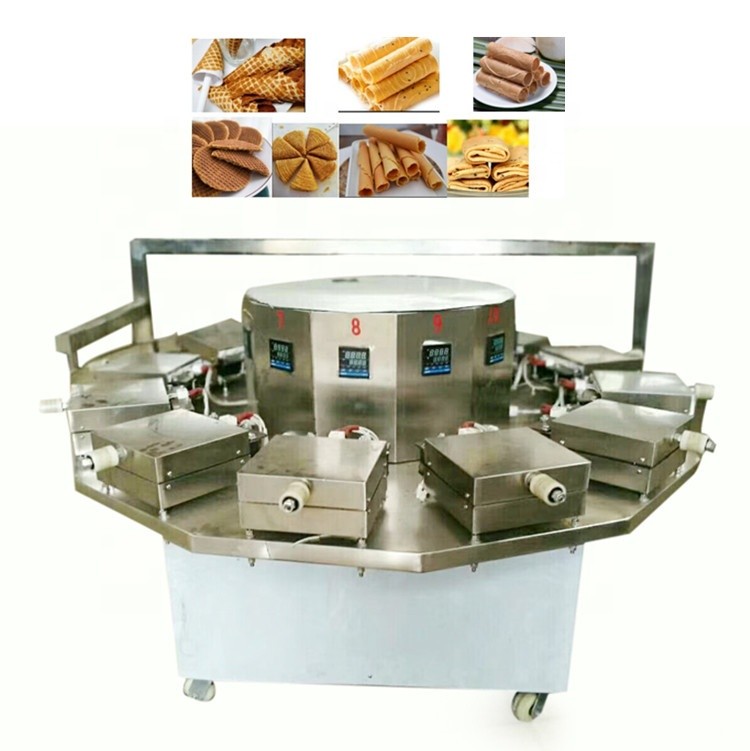

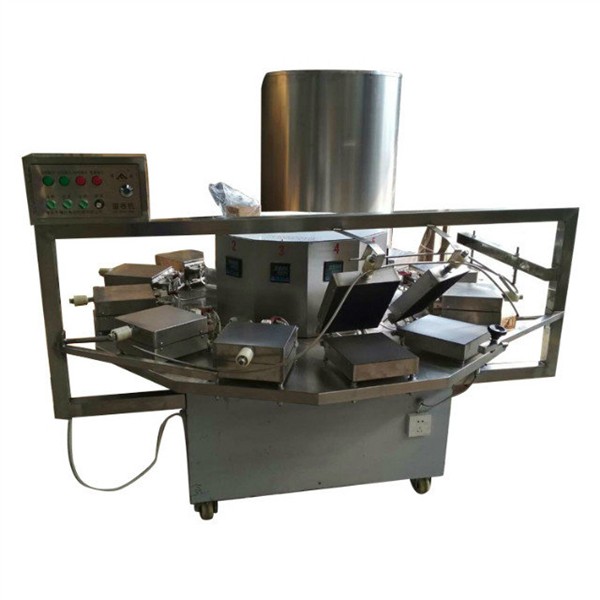

Semi Automatic egg roll making machine
Semi Automatic egg roll making machine Description
This machine is fully computer temperature controlled, completely replaces the traditional temperature control mode, precise temperature control, long life and low failure rate. The whole machine adopts PLC and touch human-computer interaction interface, which is simple and intuitive to operate and precise in control. Time control can be accurate to milliseconds, mold positioning error is less than 3 mm, the main control chassis is simple, no complicated timing switch, time delay relay, limiter, etc., not only simple operation but also strong scalability, not only can control the grouting machine , reeling machine, folding machine, can also control the humidity, viscosity, temperature, etc. of raw materials.
|
Model |
BM-8S |
BM-10S | BM-12S |
|
Heating Pan |
8pcs |
10pcs |
12pcs |
|
Egg roll size |
Length:160-180mm, Diameter:20-25mm |
Length:160-180mm, Diameter:20-25mm |
Length:160-180mm, Diameter:20-25mm |
|
Control |
PLC Touchscreen |
PLC Touchscreen |
PLC Touchscreen |
|
Template size |
22*25cm |
22*25cm |
22*25cm |
|
Voltage |
380V |
380V |
380V |
|
Power |
17.6KW |
22KW |
26.4KW |
|
Capacity |
10kg/h |
15kg/h |
20kg/h |
|
Weight |
260kg |
300kg | 340kg |
|
Dimension |
150*140*140cm |
160*160*140cm |
180*180*140cm |
Semi automatic egg roll making machine Advantages
1.The machine adopts PLC program automatic control to realize automatic uniform speed quantitative grouting, automatic temperature control baking, automatic opening and shifting, and the thickness of finished products is consistent. The equipment realizes automatic counting function, which can record actual output and facilitate management.
2.With variable frequency speed control, workers can adjust themselves according to actual production needs, greatly improving production efficiency.
3.Easy to operate, easy to use, One person can operate one.
4.Beautiful appearance, easy to clean.
5.Made entirely of stainless steel, practical and hygienic.
Semi automatic egg roll making machine Packing
1.Outside package:Standard exporting wooden case
2.Inner package:Stretch film
After-sale service
1.Free assembling and installation,free operation and training.
2.12months quality warranty since the date of installation.Whole life services.
3.During warranty,all maintenance and damaged spare parts for free.After warranty,all charges with cost price.
4.Support 24hours hot line service,as well as email and video communications.
5.Engineer is always available for customers’machine adjustment and maintenance if required.
